- Metal bevelling tool for chamfer heights up to 10 mm for weld seam preparation with maximum user safety by virtue of a dead-man switch and brake system

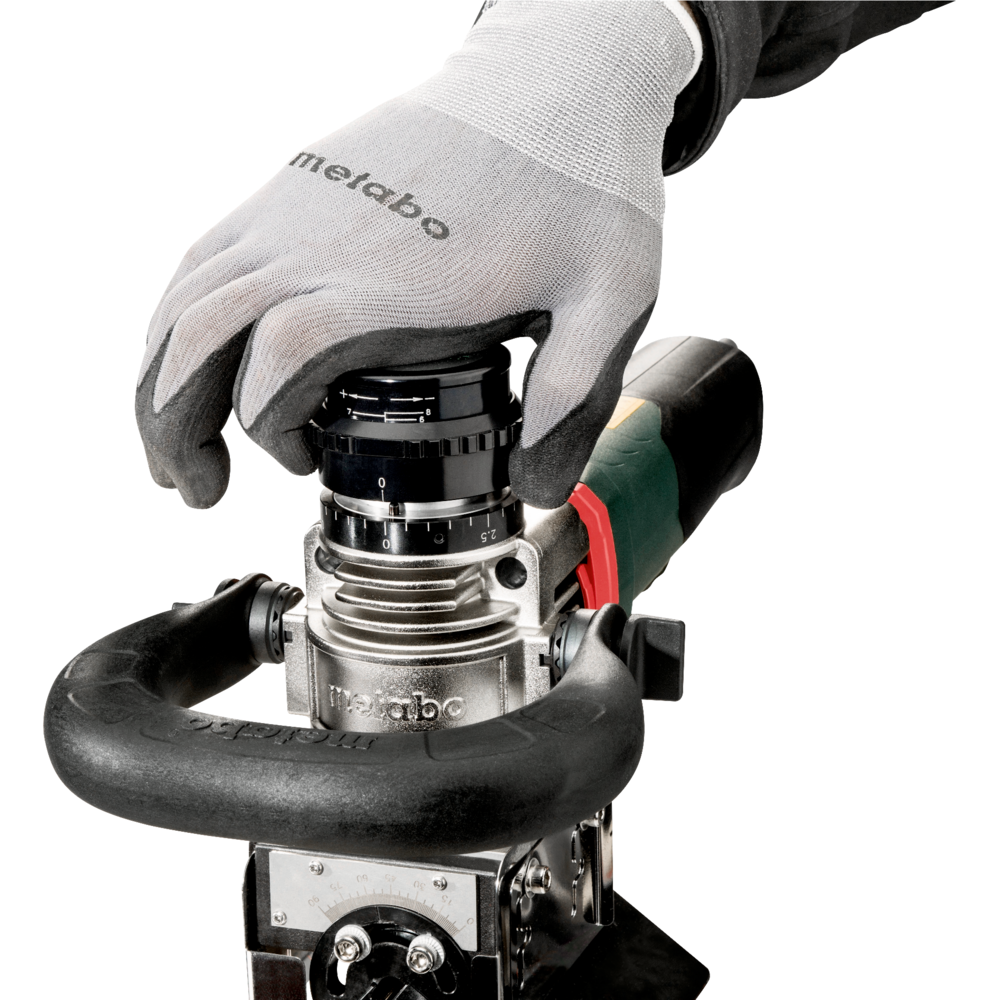

- One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

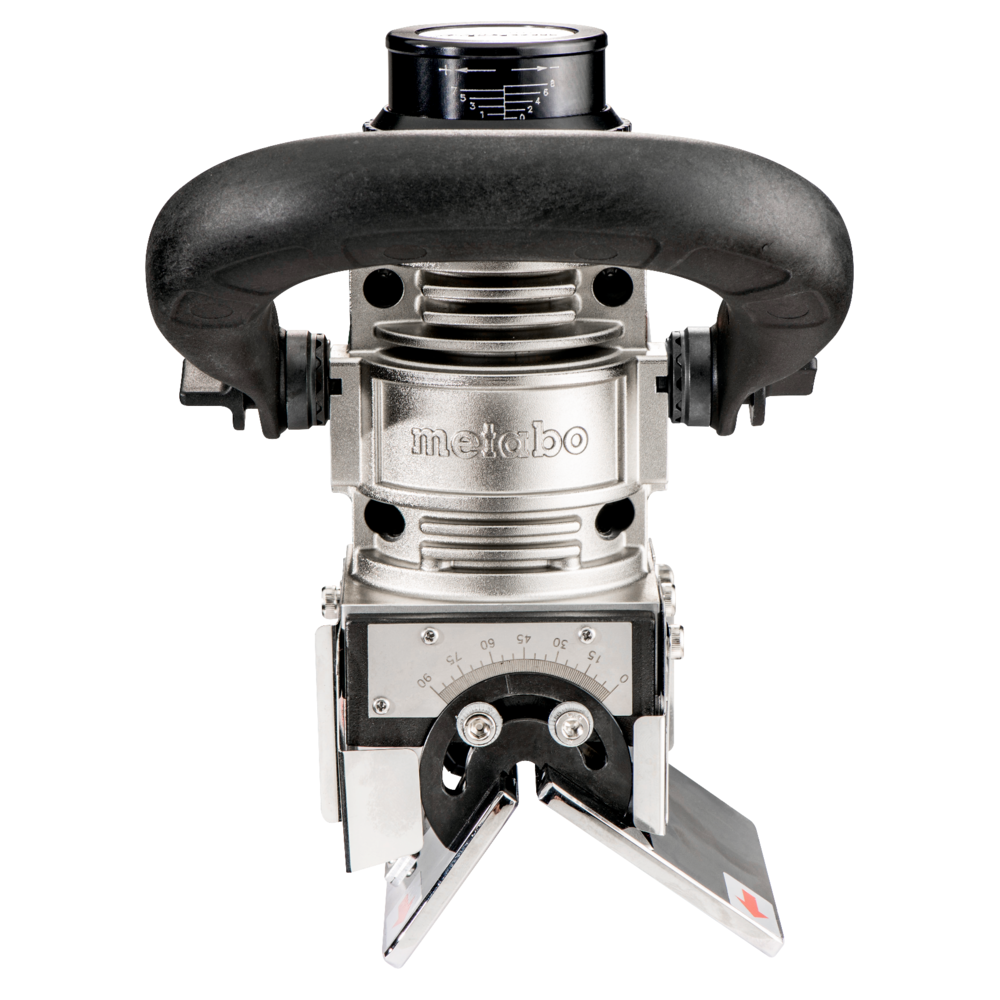

- Precise setting of the chamfer angle directly via the guide plates

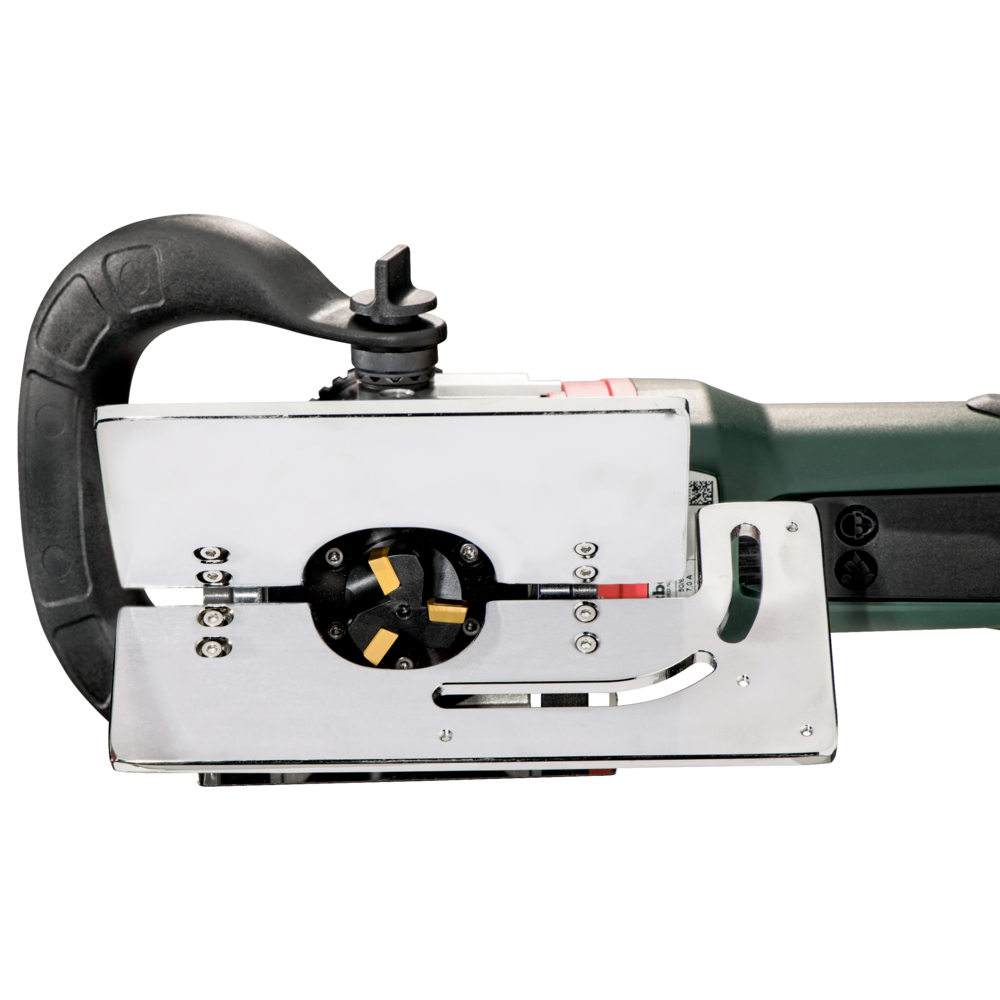

- Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
- Controlled working by virtue of large-scale guide plates
- Stop roller to guide along pipes for easy preparation of weld seams
- Bail handle adjusts without tools for secure, even guiding
- Metabo Marathon-motor with patented dust protection for long service life
- Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
- Patented, mechanical brake system stops the router bit within 2 seconds after switching off
- Electronic overload protection, soft start and restart protection
- Protection of the user by virtue of lateral plates for conveying the chips
- With metaBOX, the intelligent solution for transport and storage
Bevelling tool for metal
KFMPB 15-10 F (601755500) Bevelling tool for metal
Article number: 601755500
Your Delivery Scope
(220-240 V / 50 - 60 Hz)
metaBOX 280 L
- 1550 WRated input power
- 10 mm / 3/8 "Max. chamfer height at 45°
| No-load speed | 12500 rpm |
| Rated input power | 1550 W |
| Output power | 840 W |
| Type of edges | Chamfer |
| Chamfer angles | 0 - 90 ° |
| Max. chamfer width 45° | 14 mm / 9/16 " |
| Max. chamfer height at 45° | 10 mm / 3/8 " |
| Grading of cutting depth setting | 0.1 mm / 0.00394 " |
| Curves smallest outer Ø | 75 mm / 2 15/16 " |
| Weight (without power cable) | 5.1 kg / 11.2 lbs |
| Cable length | 4 m / 13 ft |
| Vibration | 2.5 m/s² |
| Uncertainty of measurement K | 1.5 m/s² |
| Sound pressure level | 91 dB(A) |
| Sound power level (LwA) | 102 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
| 3 Carbide indexable inserts Universal |
| Stop roller |
| Screwdriver for Torx screws 15 |
| Screwdriver SW 4 with T-handle |
| Open-jawed spanner SW 10 |
| Bow-type handle |
| metaBOX 280 L |
