- Compact metal bevelling tool for 45° chamfers and radii of 2 to 3 mm at visible edges
- Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
- One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

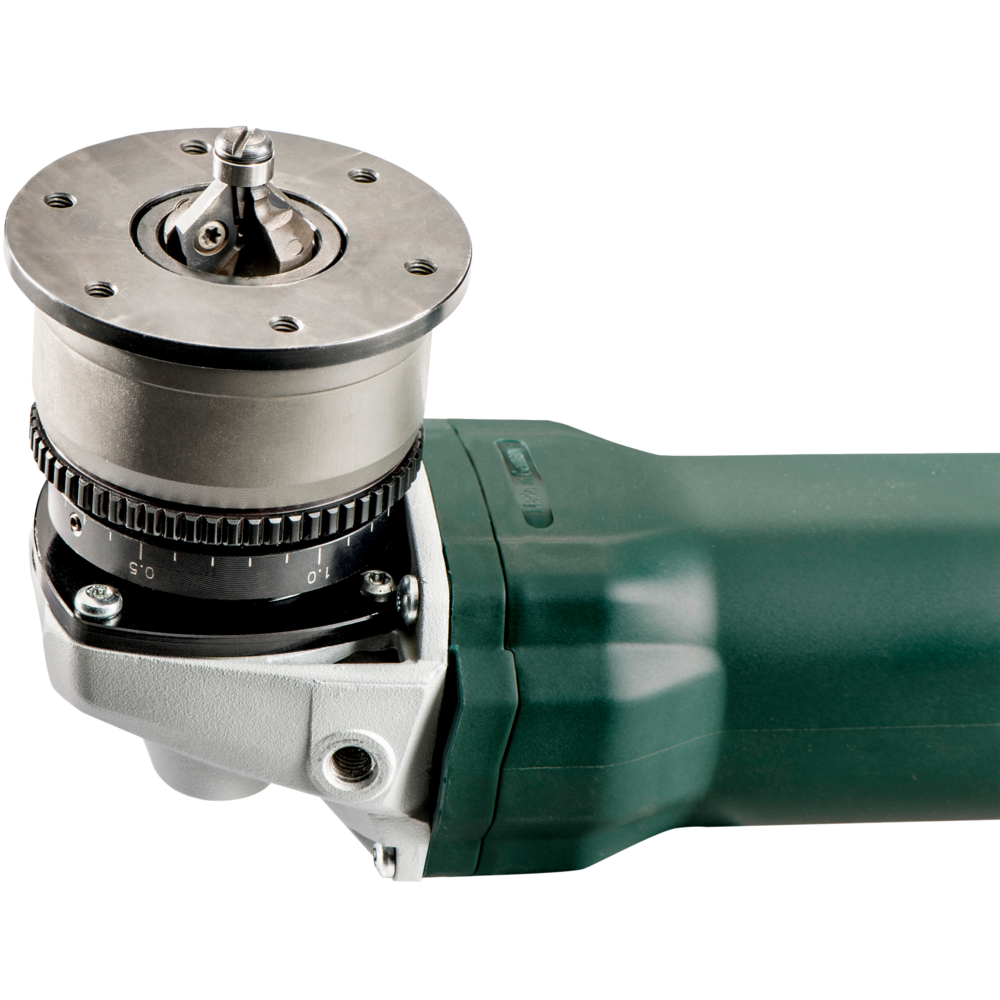

- Slim cutter head with standard carbide indexable inserts and ball-bearing stationary seal ring for working in tubes and in curves

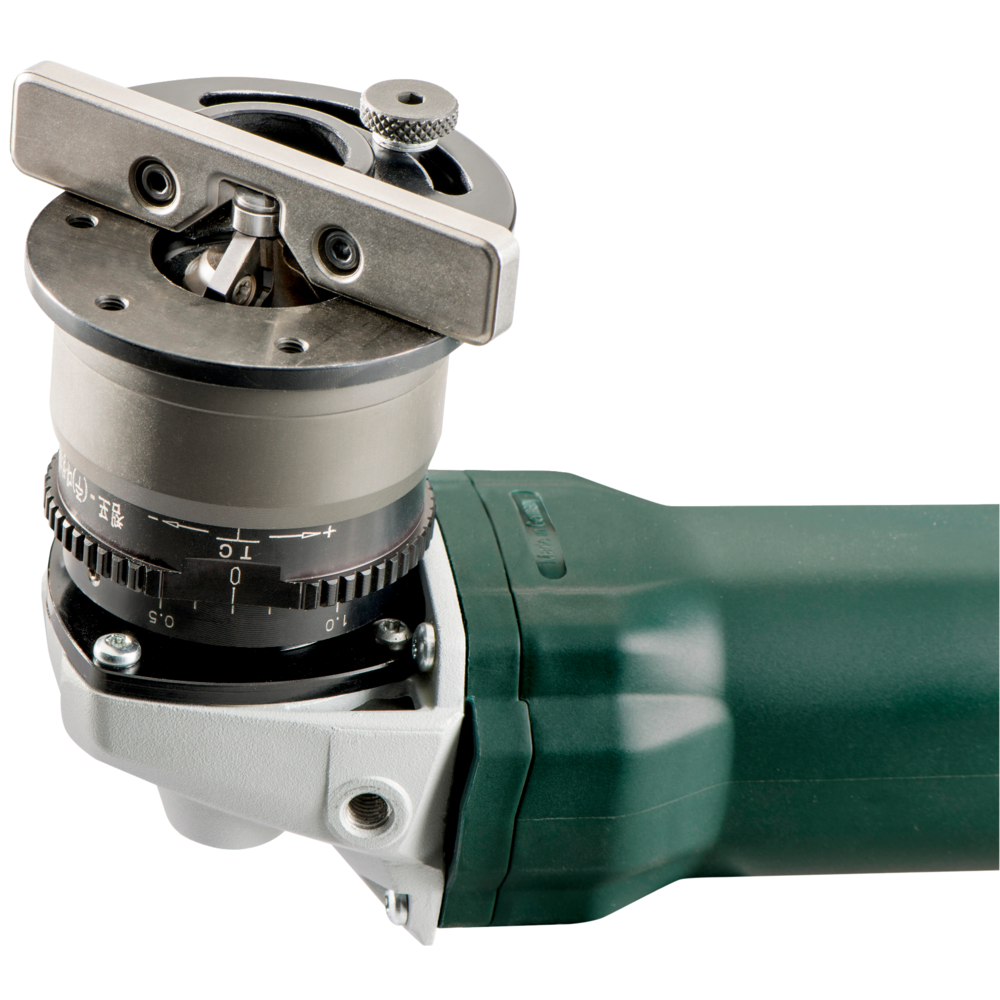

- Guide stop for a uniform finish and high quality surface finish when processing straight edges
- Bail handle adjusts without tools for secure, even guiding
- Metabo Marathon-motor with patented dust protection for long service life
- Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
- Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly
- Electronic overload protection, soft start and restart protection
- Slim design for ideal handling
- With metaBOX, the intelligent solution for transport and storage
Bevelling tool for metal
KFM 9-3 RF (601751700) Bevelling tool for metal
Article number: 601751700
Your Delivery Scope
(220-240 V / 50 - 60 Hz)
metaBOX 215
- 900 WRated input power
- 4 mm / 5/32 "Max. chamfer height at 45°
- R2 / R3Possible radii
| No-load speed | 4500 - 11500 rpm |
| Rated input power | 900 W |
| Output power | 470 W |
| Type of edges | Chamfer and radius |
| Chamfer angles | 45 - 45 ° |
| Max. chamfer width 45° | 6 mm / 1/4 " |
| Max. chamfer height at 45° | 4 mm / 5/32 " |
| Possible radii | R2 / R3 |
| Grading of cutting depth setting | 0.1 mm / 0.00394 " |
| Curves smallest internal Ø | 13 mm |
| Weight (without power cable) | 2.5 kg / 5.5 lbs |
| Cable length | 4 m / 13 ft |
| Vibration | 0.7 m/s² |
| Uncertainty of measurement K | 1.5 m/s² |
| Sound pressure level | 87 dB(A) |
| Sound power level (LwA) | 98 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
| 2 carbide indexable inserts 45° chamfer (ISO: DCMT 11 T 304) |
| 2 Carbide indexable inserts radius R2 |
| 2 Carbide indexable inserts radius R3 |
| Guide Stop |
| Screwdriver for Torx screws 15 |
| Bow-type handle |
| metaBOX 215 |
