- The most powerful cordless metal bevelling tool for 45° chamfers up to 4 mm and radii of 2 and 3 mm
- Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
- One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

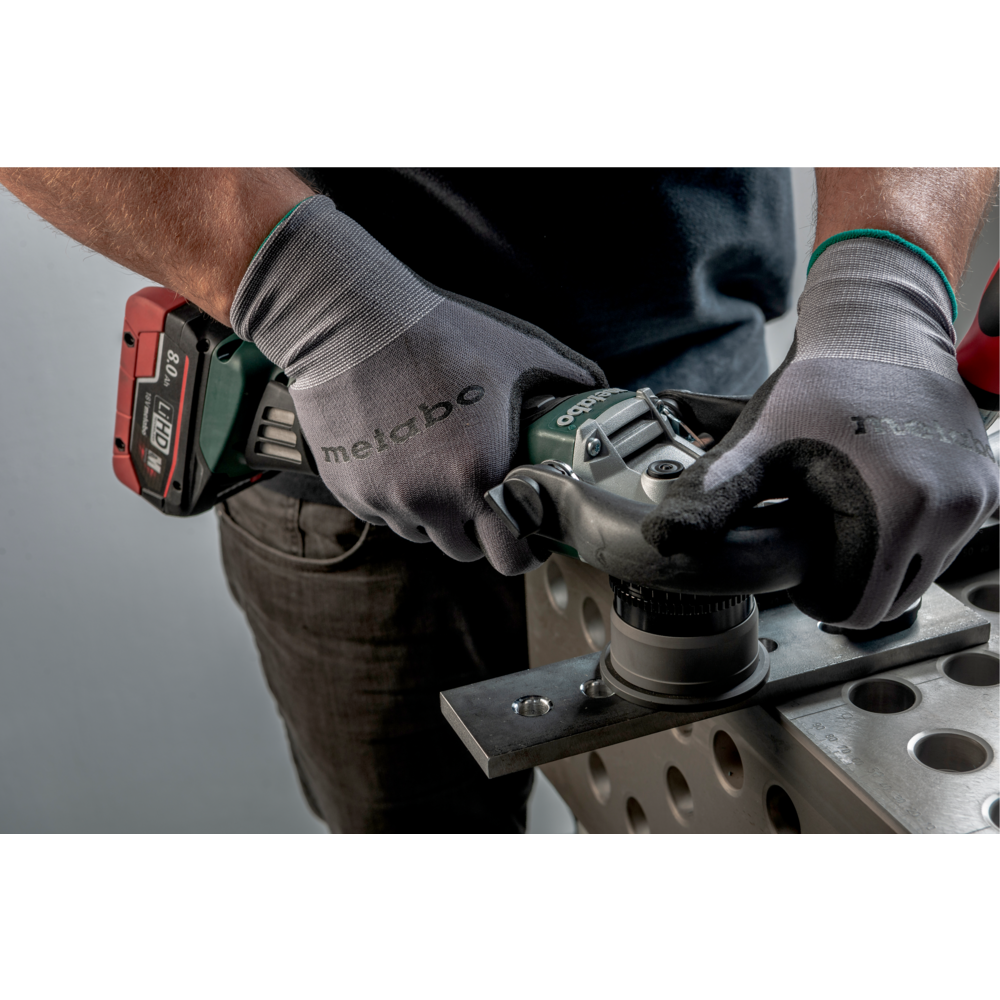

- Slim milling head and ball bearing stationary seal ring for working in pipes and on curves
- Guide stop for a uniform finish and high quality of the surface when processing straight sheets
- Bail handle adjusts without tools for secure, even guiding
- Battery pack can be rotated in 90°steps for best ergonomics in any working position
- Overload protection: protects the motor from overheating
- Electronic soft start for smooth start-up
- Restart protection: prevents unintentional start-up after battery pack change
- Detachable dust protection filter protects motor from coarse particles
- With metaBOX, the intelligent solution for transport and storage
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
Cordless bevelling tool for metal
KFM 18 LTX 3 RF (601754840) Cordless bevelling tool for metal
Article number: 601754840
Your Delivery Scope
18V
metaBOX 215
- 18 VBattery voltage
- 4 mm / 5/32 "Max. chamfer height at 45°
- R2 / R3Possible radii
| Battery voltage | 18 V |
| No-load speed | 7000 rpm |
| Type of edges | Chamfer and radius |
| Max. chamfer width 45° | 6 mm / 1/4 " |
| Max. chamfer height at 45° | 4 mm / 5/32 " |
| Possible radii | R2 / R3 |
| Grading of cutting depth setting | 0.1 mm / 0.00394 " |
| Curves smallest internal Ø | 13 |
| Weight without battery pack | 2.4 kg / 5.3 lbs |
| Weight with battery pack | 3.1 kg / 6.8 lbs |
| Vibration | 0.94 m/s² |
| Uncertainty of measurement K | 1.5 m/s² |
| Sound pressure level | 84 dB(A) |
| Sound power level (LwA) | 95 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
| 2 Carbide indexable inserts 45° chamfer |
| 2 Carbide indexable inserts radius R2 |
| 2 Carbide indexable inserts radius R3 |
| Guide Stop |
| Screwdriver for Torx screws 15 |
| Bow-type handle |
| Dust Protection Filter |
| metaBOX 215 |
| without battery pack, without charger |
